902035,902530,902510 lipo battery cell for GPS device,2S 7.4V,3S 11.1V,4S 14.8V battery pack

902035,902530,902510 lipo battery cell for GPS device,2S 7.4V,3S 11.1V,4S 14.8V battery pack

    • 902035,902530,902510 lipo battery cell for GPS device,2S 7.4V,3S 11.1V,4S 14.8V battery pack
    • 902035,902530,902510 lipo battery cell for GPS device,2S 7.4V,3S 11.1V,4S 14.8V battery pack
    • 902035,902530,902510 lipo battery cell for GPS device,2S 7.4V,3S 11.1V,4S 14.8V battery pack
  • 902035,902530,902510 lipo battery cell for GPS device,2S 7.4V,3S 11.1V,4S 14.8V battery pack

    Product Details:

    Place of Origin: China
    Brand Name: JOYBAT
    Certification: CE,Rohs
    Model Number: JOY902530

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pcs
    Packaging Details: Carton
    Delivery Time: 7 days
    Payment Terms: T/T,Western Union
    Supply Ability: In stock
    Contact Now
    Detailed Product Description

    Application:
    Widely used in mobile phones, notebook computers, consumer electronics, military, aviation products and so on.

    Feature:

    1. No memory effect
    2. High energy density
    3. High operating voltage
    4. Safety characteristics are excellent
    5. Discharge temperature range of-20°C+60°C
    6. Charge/discharge cycle characteristics are excellent

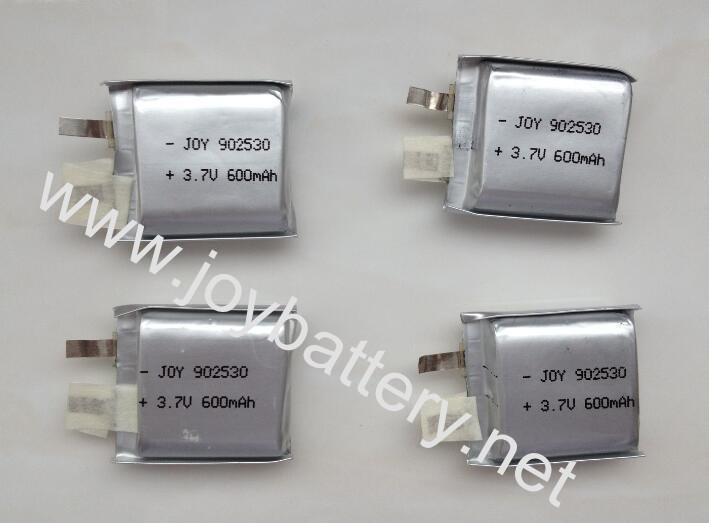

    Model: 902530

    No. Item Characteristics Remarks
    1 Nominal Capacity Minimum: 600mAh
    Typical: 610mAh
    Fully charged @1C to 4.2V for 2.5 hrs, then discharge to 3.0V @ 0.2C.
    2 Nominal Voltage 3.7V
    3 Charging Cut-off Voltage 4.2V
    4 Discharge Cut-off Voltage 3.0V
    5 Max. Charging Current 600mA(1C)
    6 Max. Discharging Current 1200mA(2C)
    7 Operating Temperature Charge      0-45°C
    Discharge  -20-60°C

    8 Storage Temperature -20-45°C for 1Month
     -20-35°C for 6Months

    9 Dimension 9.0*25*30mm Maximum dimension
    10 Weight 10g Approximate value


    Caution:
    1. Do not burn the battery.
    2. Do not disassemble the battery.
    3. Do not make the battery short-circuit.
    4. Do not exceed the specified range of temperature.
