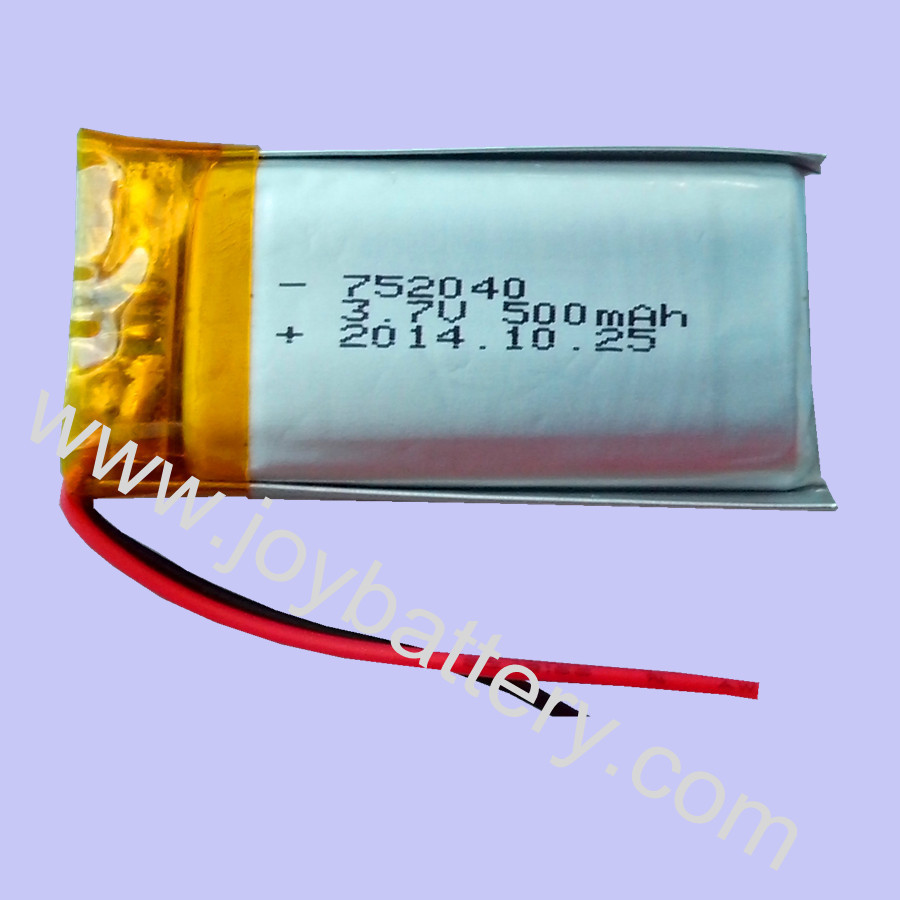

752040 3.7v 500mAh Li-ion Battery Rechargeable Lithium Polymer Battery For Blueteeth

Product Details:

Place of Origin:	China
Brand Name:	JOYBAT
Certification:	CE,Rohs
Model Number:	JOY752040

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	Carton
Delivery Time:	7 days
Payment Terms:	T/T,Western Union
Supply Ability:	3000 Pieces per Day

Contact Now

Detailed Product Description

Voltage:	3.7V	Weight:	25g
Nominal Capacity:	500mAh

Application:
Widely used in mobile phones, notebook computers, consumer electronics, military, aviation products and so on.

Feature:
1. No memory effect
2. High energy density
3. High operating voltage
4. Safety characteristics are excellent
5. Discharge temperature range of-20°C+60°C
6. Charge/discharge cycle characteristics are excellent

Model: 752040

No.	Item	Characteristics	Remarks
1	Nominal Capacity	Minimum: 50mAh Typical: 510mAh	Fully charged @1C to 4.2V for 2.5 hrs, then discharge to 3.0V @ 0.2C.
2	Nominal Voltage	3.7V
3	Charging Cut-off Voltage	4.2V
4	Discharge Cut-off Voltage	3.0V
5	Max. Charging Current	500mAh(1C)
6	Max. Discharging Current	1000mAh(2C)
7	Operating Temperature	Charge 0-45°C Discharge -20-60°C
8	Storage Temperature	-20-45°C for 1Month -20-35°C for 6Months
9	Dimension	7.52040mm	Maximum dimension
10	Weight	25g	Approximate value

Caution:
1. Do not burn the battery.
2. Do not disassemble the battery.
3. Do not make the battery short-circuit.
4. Do not exceed the specified range of temperature.

Website:http://www.joybattery.com http://www.joybattery.net

752040 3.7v 500mAh Li-ion Battery Rechargeable Lithium Polymer Battery For Blueteeth

Tag:

polymer battery,

lipo cell,

lithium ion polymer battery
