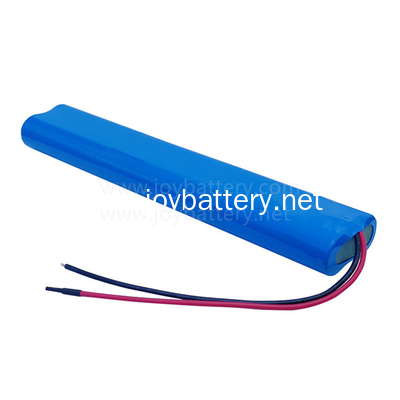

eight sections four series and two parallel 4ER14505-2 14.4V 5400mAh ER14505-4S2P non-rechargeable lithium battery pack
Product Details:
| Place of Origin: |
China |
| Brand Name: |
JOYBAT |
| Certification: |
CE,Rohs |
| Model Number: |
ER14505-4S2P |
Payment & Shipping Terms:
| Minimum Order Quantity: |
10 pcs |
| Packaging Details: |
Carton |
| Delivery Time: |
7 days |
| Payment Terms: |
T/T, Western Union |
| Supply Ability: |
In stock |
Contact Now
Detailed Product Description
| Voltage: |
14.4V |
Capacity: |
5400mAh |
Application:
Widely used in Automatic meter reading, Medical electronics, Memory backup, Tracking systems, Earthquake detectors, Electronic toll tags, Portable communication equipment etc.
Feature:
1. High energy density
2. Stable voltage and current
3. Wide range of operating temperature
4. Low self-discharge rate and long storage life
5. High open circuit voltage, high operating voltage
6. Long operating time for continuous low current discharge with medium current pulses
Power Type List:
| No. |
Voltage |
Capacity |
Standard Current |
Continuous Current |
Pulse Current |
Dimensions(mm)Diameter * Height |
Weight |
| ER14250M |
3.6V |
800mAh |
2mA |
100mA |
500mA |
14.5mm*25.2mm |
10g |
| ER14335M |
3.6V |
1350mAh |
3mA |
150mA |
1000mA |
14.5mm*33.5mm |
13g |
| ER14505M |
3.6V |
2200mAh |
4mA |
400mA |
1500mA |
14.5mm*50.5mm |
19g |
| ER17335M |
3.6V |
1800mAh |
3mA |
400mA |
1500mA |
17.0mm*33.5mm |
20g |
| ER17505M |
3.6V |
3000mAh |
5mA |
1000mA |
1500mA |
17.0mm*50.5mm |
26g |
| ER18505M |
3.6V |
3500mAh |
5mA |
600mA |
2000mA |
18.5mm*50.5mm |
28g |
| ER26500M |
3.6V |
6500mAh |
10mA |
800mA |
2500mA |
26.2mm*50.0mm |
52g |
| ER34615M |
3.6V |
13000mAh |
15mA |
1800mA |
4500mA |
32.9mm*61.5mm |
100g |
