Features: 1) Long service life
2) Low self-discharge
3) Environment friendly
4) Good safety performance
5) Maintenance-free operation
6) Broad operating temperature range

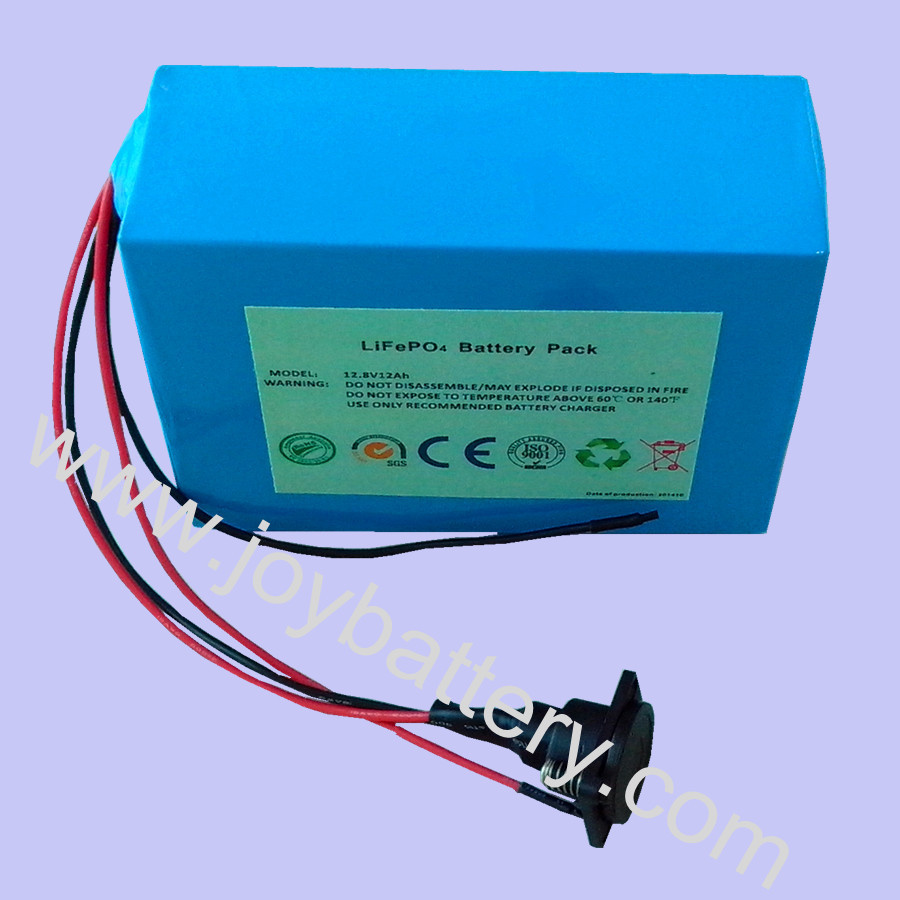

Model
12.8V 12Ah
Nominal Voltage (V)
12.8V
Nominal Capacity (Ah)
12Ah
Source Resistance (mΩ)
<30
Battery Size
187*127*67mm
Discharge Cut off Voltage (V)
14.6V
Charge Cut off Voltage (V)
10.0V
Max Continuous Discharge Current (A)
12A
Max Peak Discharge Current (A)
24A
Charge Mode
CC-CV
Charge Temperature Range
0-45°C
Discharge Temperature Range
-10-60°C
Weight
About 1.8Kg
Caution:
1. Do not burn the battery.
2. Do not disassemble the battery.
3. Do not make the battery short-circuit.
4. Do not exceed the specified range of temperature.
