Place of Origin: | China |
Brand Name: | JOYBAT |
Certification: | CE,Rohs |
Model Number: | 3609 |
Minimum Order Quantity: | 5 Pieces |
---|---|
Packaging Details: | Carton |
Delivery Time: | 7 days |
Payment Terms: | T/T,Western Union |
Supply Ability: | 1000 Packs per Day |
Voltage: | 36V | Nominal Capacity: | 9Ah |
---|

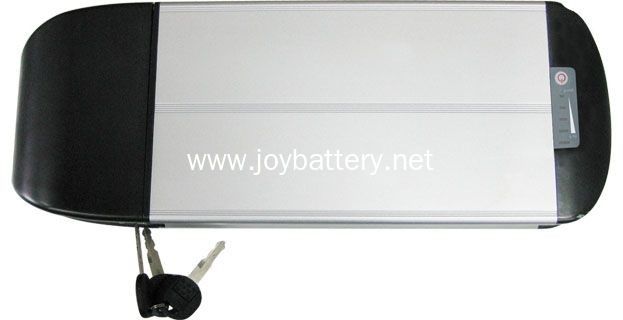

Model:3609
Cell type: PANASONIC CGR18650CG
Nominal voltage: 36V
Nominal capacity: 9000mAh
Nominal rate: 324Wh
Configuration: 10S4P
Interior resistance: less than 180mΩ
Weight: 2.75KG – 2.85 KG
Charge voltage limit: 42V
Max charging current: 3A
Standard Discharge mode: 5A, 27.5V
Max continuous discharge current:15A (10min), 18A ( 5sec)
Over current protection: 37A (PEAK, 0.02 msec)
Standard charge mode: charge to 42V with constant current, then charge with constant voltage till current less than 300mA. Use specific charger: CC+CV: 2A, 42V/300mA
Cycle life: By standard charge mode, keep for 30 minutes; standard discharge mode can use more than 500 cycles, and after that 70% capacity remains.
Storage temperature range: - 20℃ to 40℃
Charge temperature range: 0℃ to 45℃
Discharge temperature range:- 10℃ to 60℃
Standard BMS:
1. Overcharge protection; over current protection balance & high temperature protection.
2. Intelligent BMS: standard BMS functions, scale, communication, sleep, encode taillight blinking, 5V USB output.
