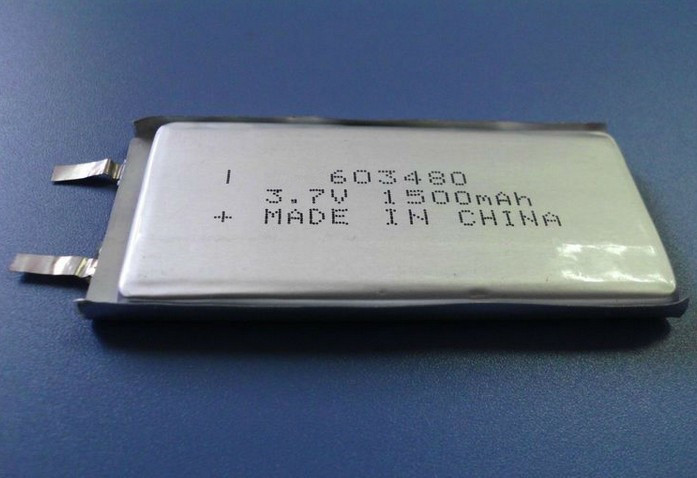

Hot sales 603480 3.7V 1500mah lipo battery rechargeable

Hot sales 603480 3.7V 1500mah lipo battery rechargeable

Hot sales 603480 3.7V 1500mah lipo battery rechargeable

Product Details:

Place of Origin: China
Brand Name: JOYBAT
Certification: CE,UL
Model Number: 603480

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Packaging Details: Carton
Delivery Time: 7 days
Payment Terms: TT/Western Union
Supply Ability: 3000 Pieces per Day
Contact Now
Detailed Product Description

Application:
Widely used in mobile phones, notebook computers, consumer electronics, military, aviation products and so on.

Feature:

1. No memory effect
2. High energy density
3. High operating voltage
4. Safety characteristics are excellent
5. Discharge temperature range of-20°C+60°C
6. Charge/discharge cycle characteristics are excellent


Model: 603480

No. Item Characteristics Remarks
1 Nominal Capacity Minimum: 1800mAh
Typical: 1900mAh
Fully charged @1C to 4.2V for 2.5 hrs, then discharge to 3.0V @ 0.2C.
2 Nominal Voltage 3.7V
3 Charging Cut-off Voltage 4.2V
4 Discharge Cut-off Voltage 3.0V
5 Max. Charging Current 1800mAh(1C)
6 Max. Discharging Current 3600mAh(2C)
7 Operating Temperature Charge      0-45°C
Discharge  -20-60°C

8 Storage Temperature -20-45°C for 1Month
 -20-35°C for 6Months

9 Dimension 6.0*34*80mm Maximum dimension
10 Weight 30g Approximate value


Caution:
1. Do not burn the battery.
2. Do not disassemble the battery.
3. Do not make the battery short-circuit.
4. Do not exceed the specified range of temperature.
